New for 2026

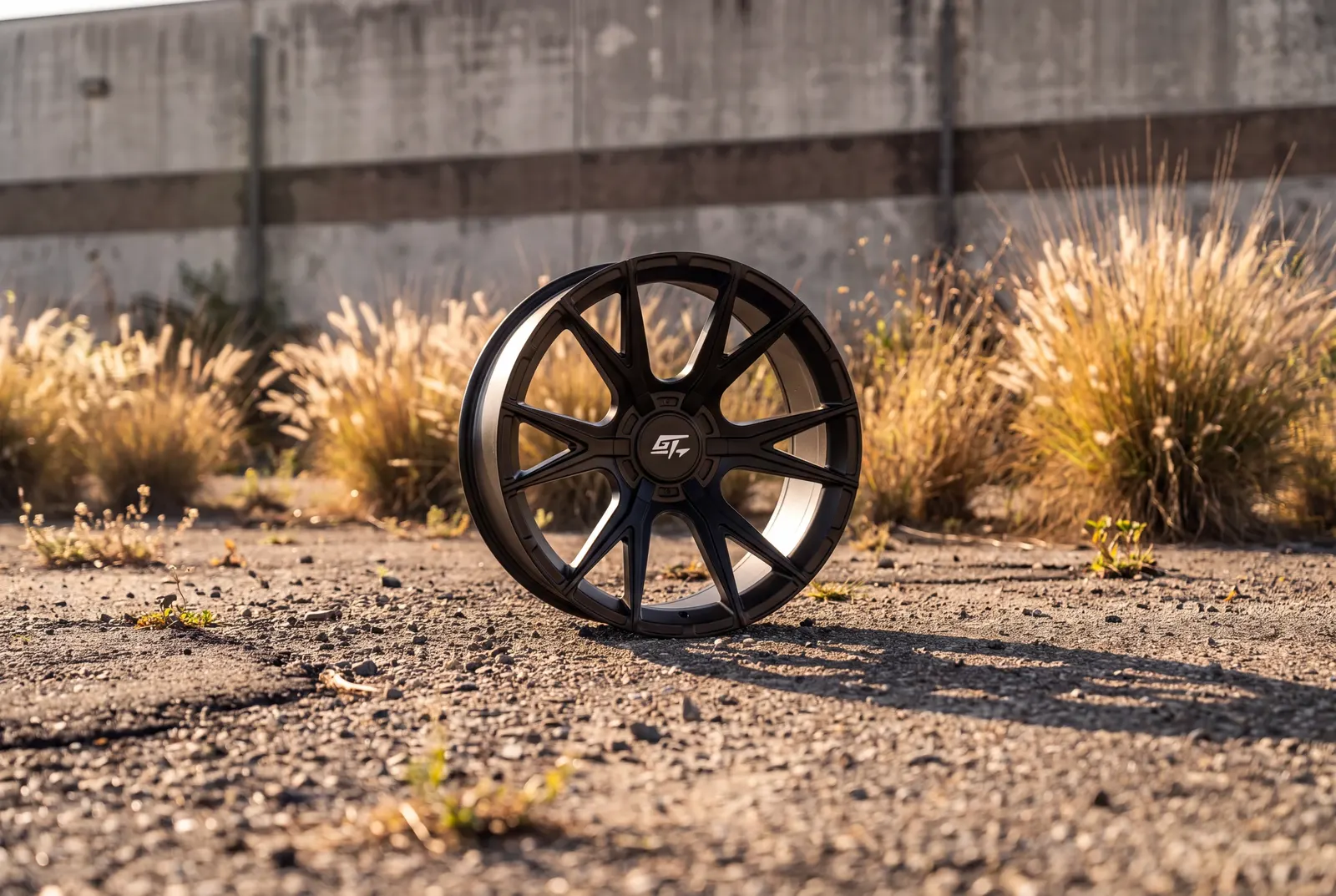

Fusion

Y-spoke · maximum concave

The Fusion's bold Y-spoke design and maximum concave profile deliver a sleek, modern look with serious depth.

Precision-made from high-strength aluminum alloy, it balances strength with lightweight performance.

Finish

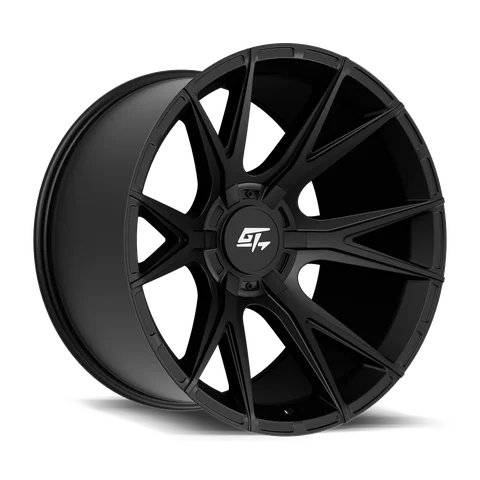

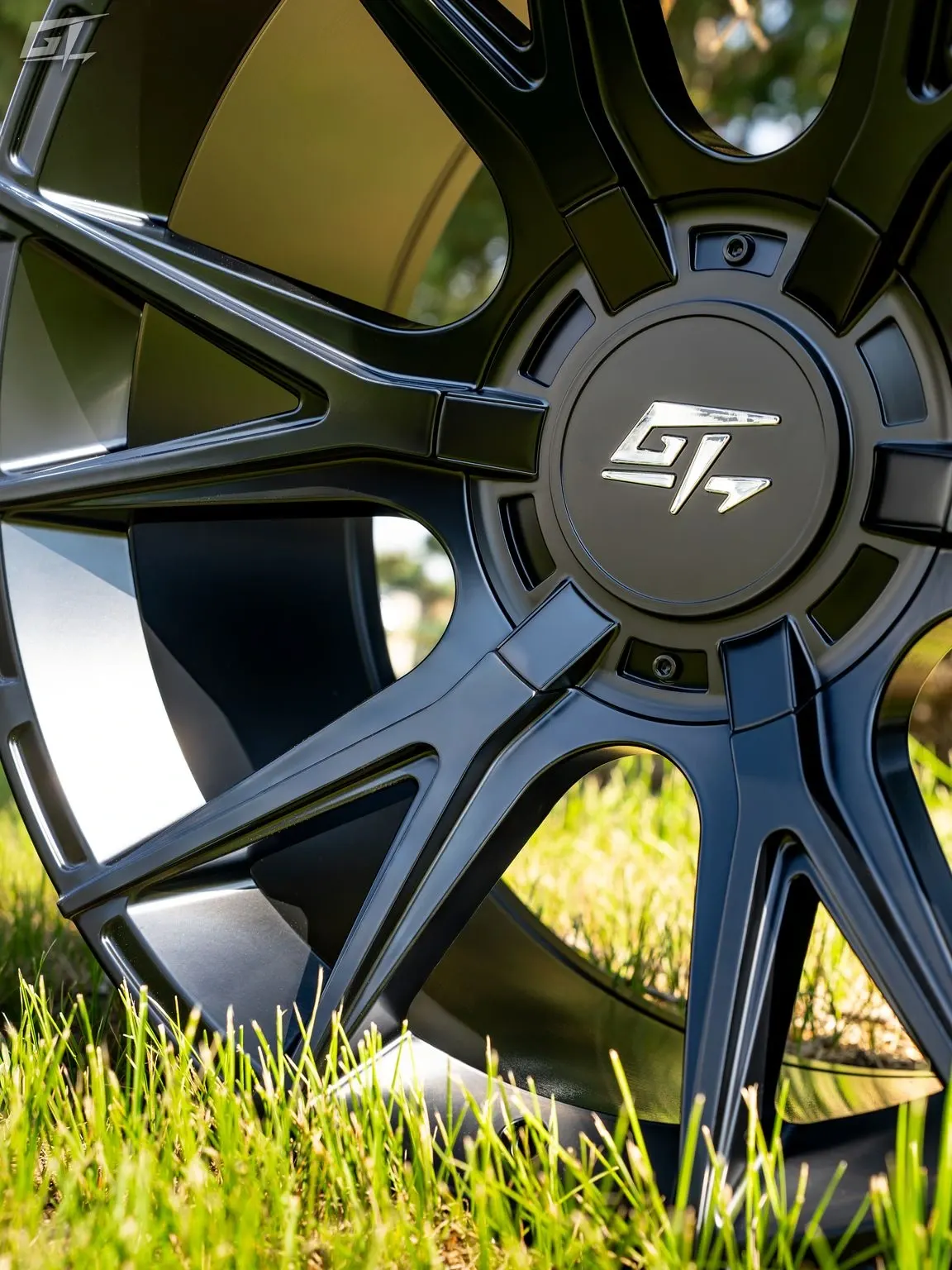

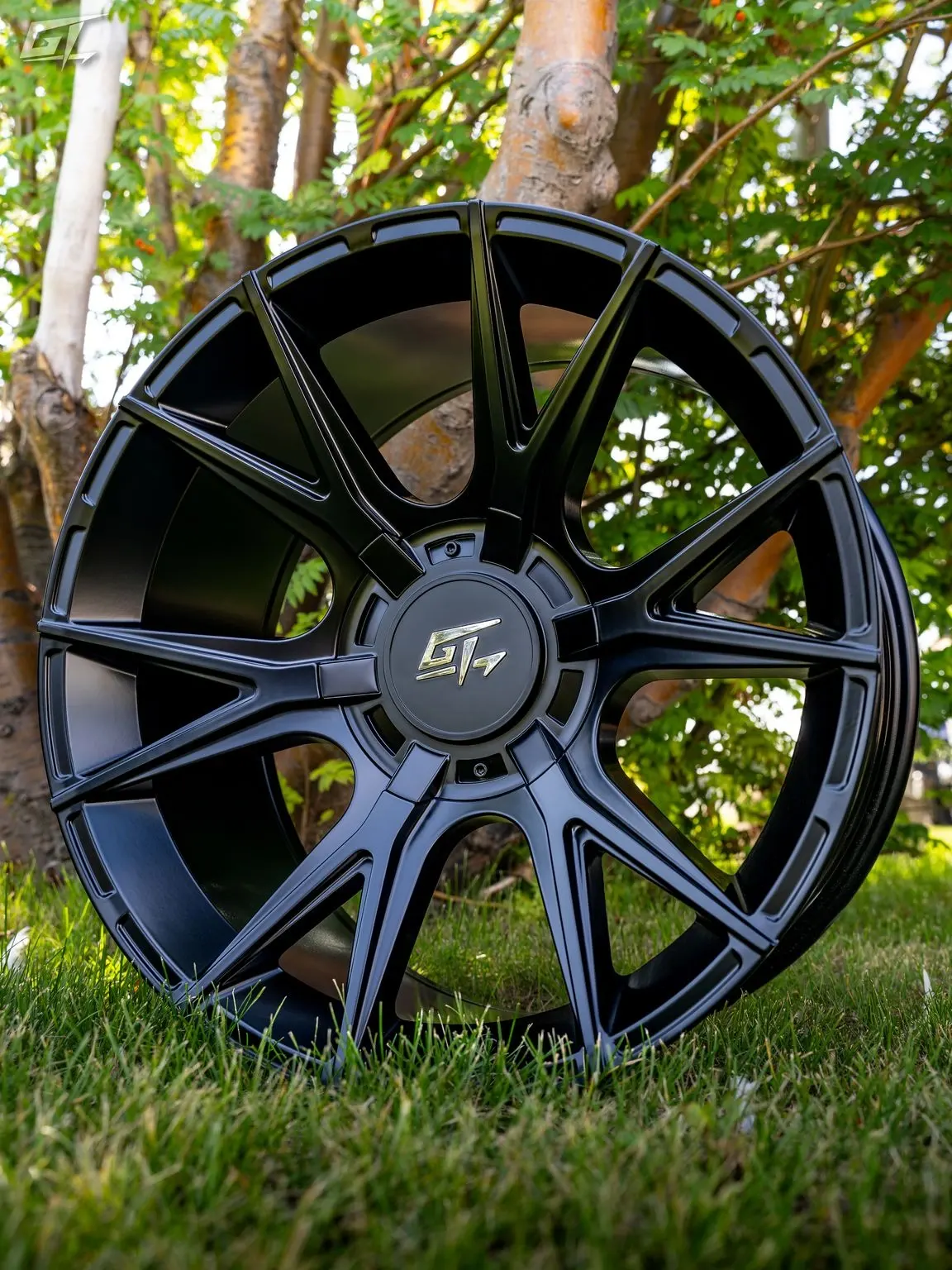

Satin Black

Sizes & offsets (mm)

Available sizes by diameter
20"	20x9+1220x10−18
22"	22x10−1822x12−44

Request a quote Find a dealer

Not every size is offered in every bolt pattern. Tell us your truck and we'll confirm the exact fitment.

Full specifications Part numbers (32) Download spec sheet (PDF)

Specifications

Fusion spec sheet

Every size, offset, bolt pattern and finish for the GT Off-Road Fusion.

Download PDF

Diameters: 20" · 22"
Widths: 9" · 10" · 12"
Offset range: +12 to −44 mm
Lug options: 5 / 6 / 8-lug
Center bore: 78.1–125.2 mm
Max load: Up to 3,200 lbs
Finishes: 2
Part numbers: 32

Sizes & fitment

Fusion sizes, offsets and approximate backspacing
Size	Diameter	Width	Offset (mm)	Backspacing*	Stance
20x9	20"	9"	+12	5.47"	Mostly flush
20x10	20"	10"	−18	4.79"	Mild poke
22x10	22"	10"	−18	4.79"	Mild poke
22x12	22"	12"	−44	4.77"	Aggressive poke

*Approximate, calculated from width and offset. Actual stance depends on your truck's factory offset, lift and tire size.

Bolt patterns

5x1275 x 5"

5x139.75 x 5.5"

6x1356 x 135 mm

6x139.76 x 5.5"

8x165.18 x 6.5"

8x1708 x 170 mm

8x1808 x 180 mm

Bolt pattern availability varies by size. See the part number list for exact availability.

Construction & features

High-strength aluminum alloy construction
Maximum concave profile
Y-spoke design

Finishes

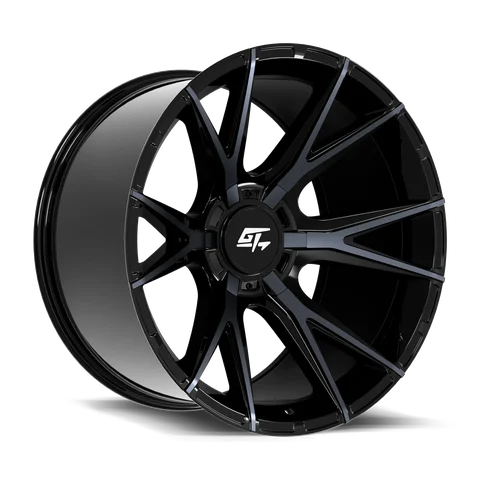

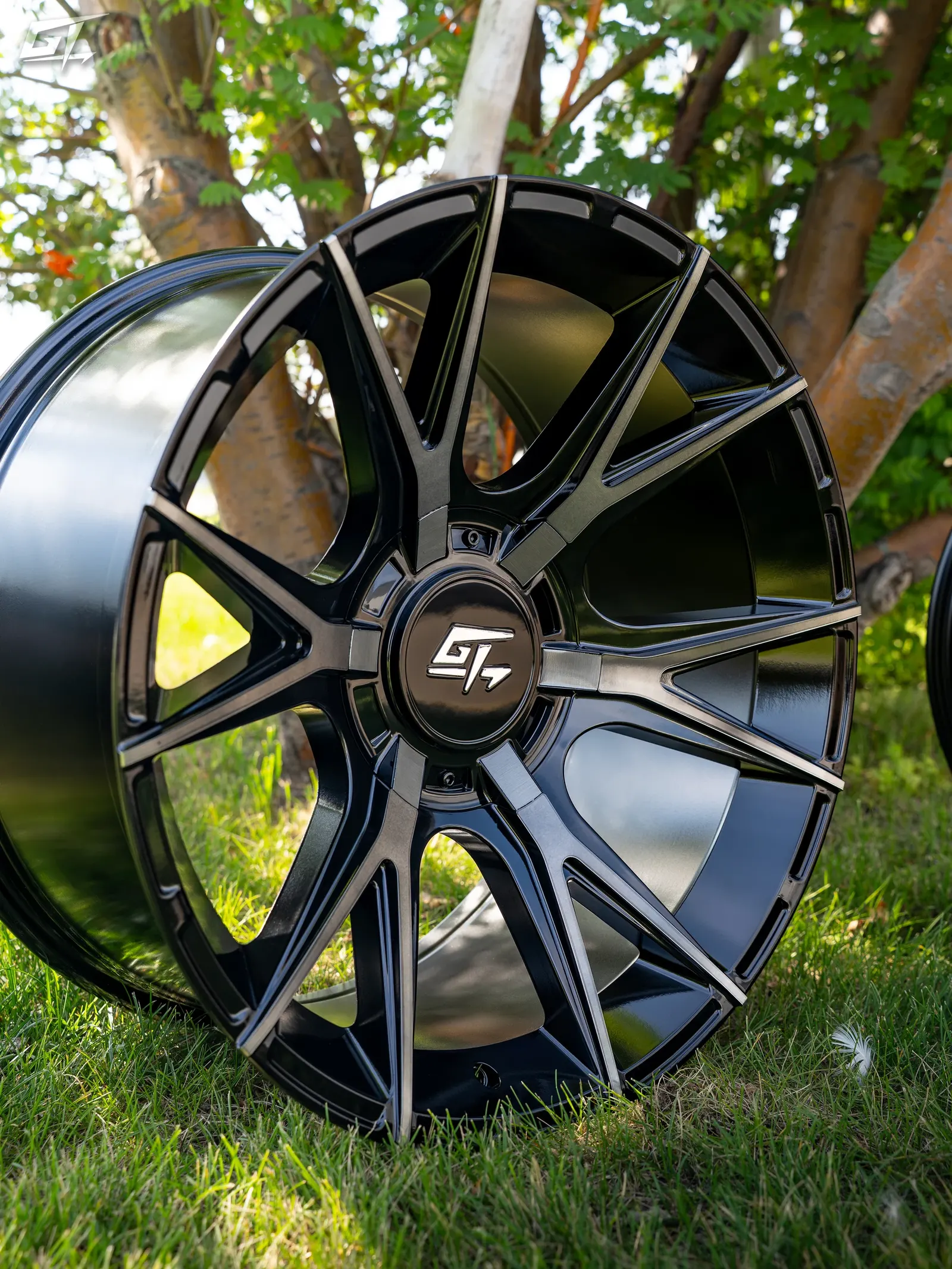

GT Off-Road Fusion in Gloss Black Titanium Tint — Gloss Black Titanium Tint

Complete spec sheet

Fusion part numbers

Every Fusion SKU by finish, size, offset and bolt pattern. Give your dealer the part number for an exact match.

Download CSV

32 of 32 part numbers

GT Off-Road Fusion part numbers
Finish	Size	Offset	Bolt pattern	Center bore (mm)	Max load (lbs)	Quote
Satin Black	20x9	+12	5x127 / 5x139.7	78.1	2,500	Quote
Satin Black	20x9	+12	6x135 / 6x139.7	106.1	2,500	Quote
Satin Black	20x9	+12	8x165.1 / 8x170	125.2	3,200	Quote
Satin Black	20x9	+12	8x165.1 / 8x180	125.2	3,200	Quote
Satin Black	20x10	−18	5x127 / 5x139.7	78.1	2,500	Quote
Satin Black	20x10	−18	6x135 / 6x139.7	106.1	2,500	Quote
Satin Black	20x10	−18	8x165.1 / 8x170	125.2	3,200	Quote
Satin Black	20x10	−18	8x165.1 / 8x180	125.2	3,200	Quote
Satin Black	22x10	−18	5x127 / 5x139.7	78.1	2,500	Quote
Satin Black	22x10	−18	6x135 / 6x139.7	106.1	2,500	Quote
Satin Black	22x10	−18	8x165.1 / 8x170	125.2	3,200	Quote
Satin Black	22x10	−18	8x165.1 / 8x180	125.2	3,200	Quote
Satin Black	22x12	−44	5x127 / 5x139.7	78.1	2,500	Quote
Satin Black	22x12	−44	6x135 / 6x139.7	106.1	2,500	Quote
Satin Black	22x12	−44	8x165.1 / 8x170	125.2	3,200	Quote
Satin Black	22x12	−44	8x165.1 / 8x180	125.2	3,200	Quote
Gloss Black Titanium Tint	20x9	+12	5x127 / 5x139.7	78.1	2,500	Quote
Gloss Black Titanium Tint	20x9	+12	6x135 / 6x139.7	106.1	2,500	Quote
Gloss Black Titanium Tint	20x9	+12	8x165.1 / 8x170	125.2	3,200	Quote
Gloss Black Titanium Tint	20x9	+12	8x165.1 / 8x180	125.2	3,200	Quote
Gloss Black Titanium Tint	20x10	−18	5x127 / 5x139.7	78.1	2,500	Quote
Gloss Black Titanium Tint	20x10	−18	6x135 / 6x139.7	106.1	2,500	Quote
Gloss Black Titanium Tint	20x10	−18	8x165.1 / 8x170	125.2	3,200	Quote
Gloss Black Titanium Tint	20x10	−18	8x165.1 / 8x180	125.2	3,200	Quote
Gloss Black Titanium Tint	22x10	−18	5x127 / 5x139.7	78.1	2,500	Quote
Gloss Black Titanium Tint	22x10	−18	6x135 / 6x139.7	106.1	2,500	Quote
Gloss Black Titanium Tint	22x10	−18	8x165.1 / 8x170	125.2	3,200	Quote
Gloss Black Titanium Tint	22x10	−18	8x165.1 / 8x180	125.2	3,200	Quote
Gloss Black Titanium Tint	22x12	−44	5x127 / 5x139.7	78.1	2,500	Quote
Gloss Black Titanium Tint	22x12	−44	6x135 / 6x139.7	106.1	2,500	Quote
Gloss Black Titanium Tint	22x12	−44	8x165.1 / 8x170	125.2	3,200	Quote
Gloss Black Titanium Tint	22x12	−44	8x165.1 / 8x180	125.2	3,200	Quote
