Stark

Slanted multi-spoke · deep concave

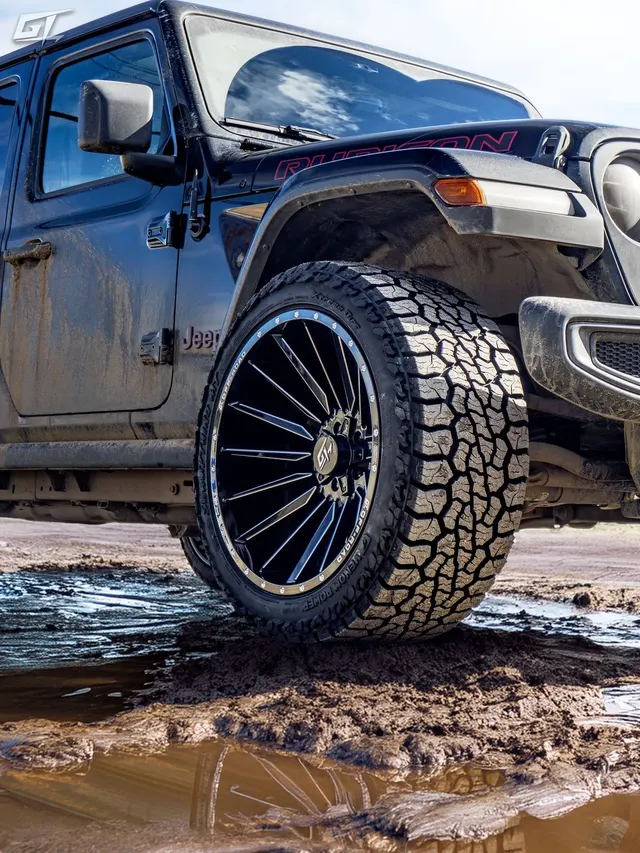

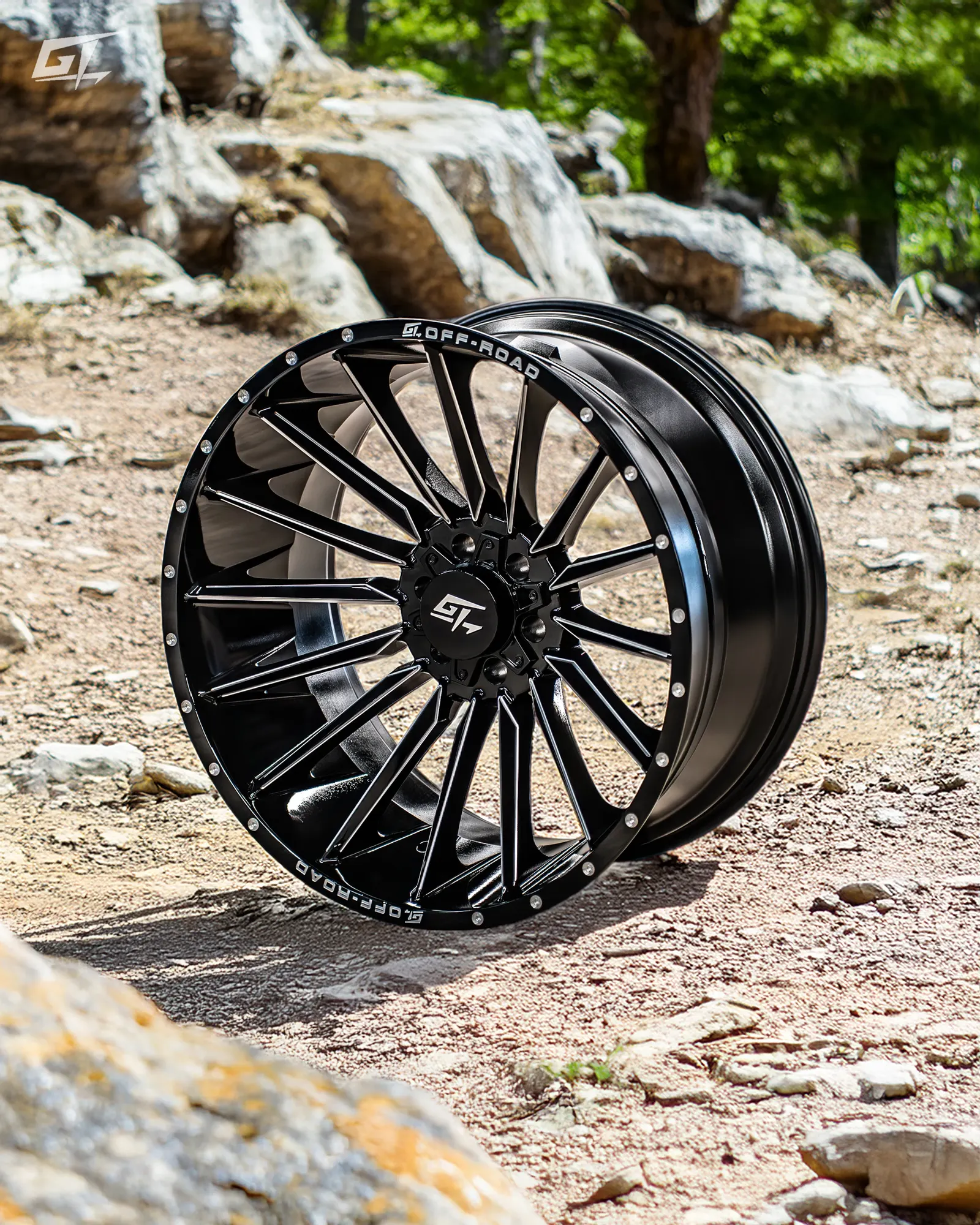

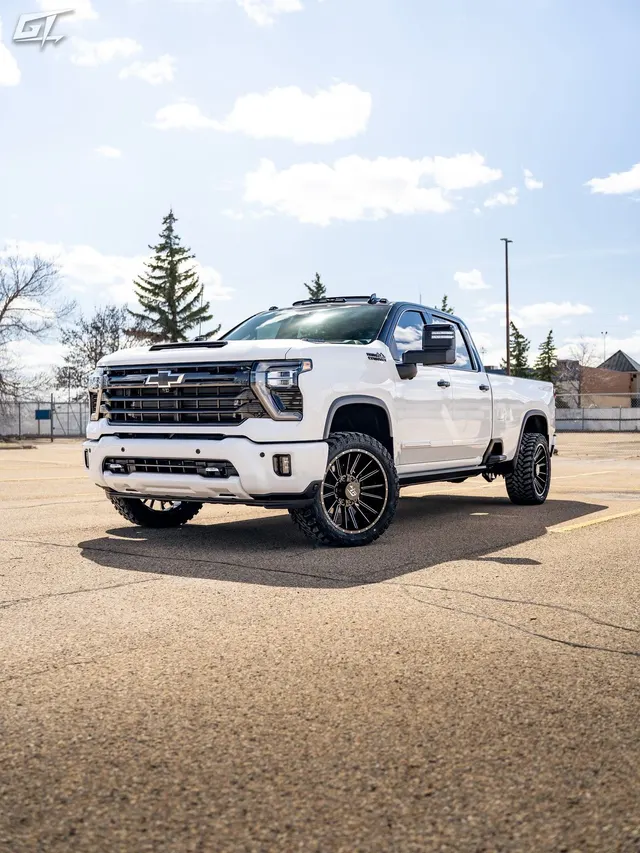

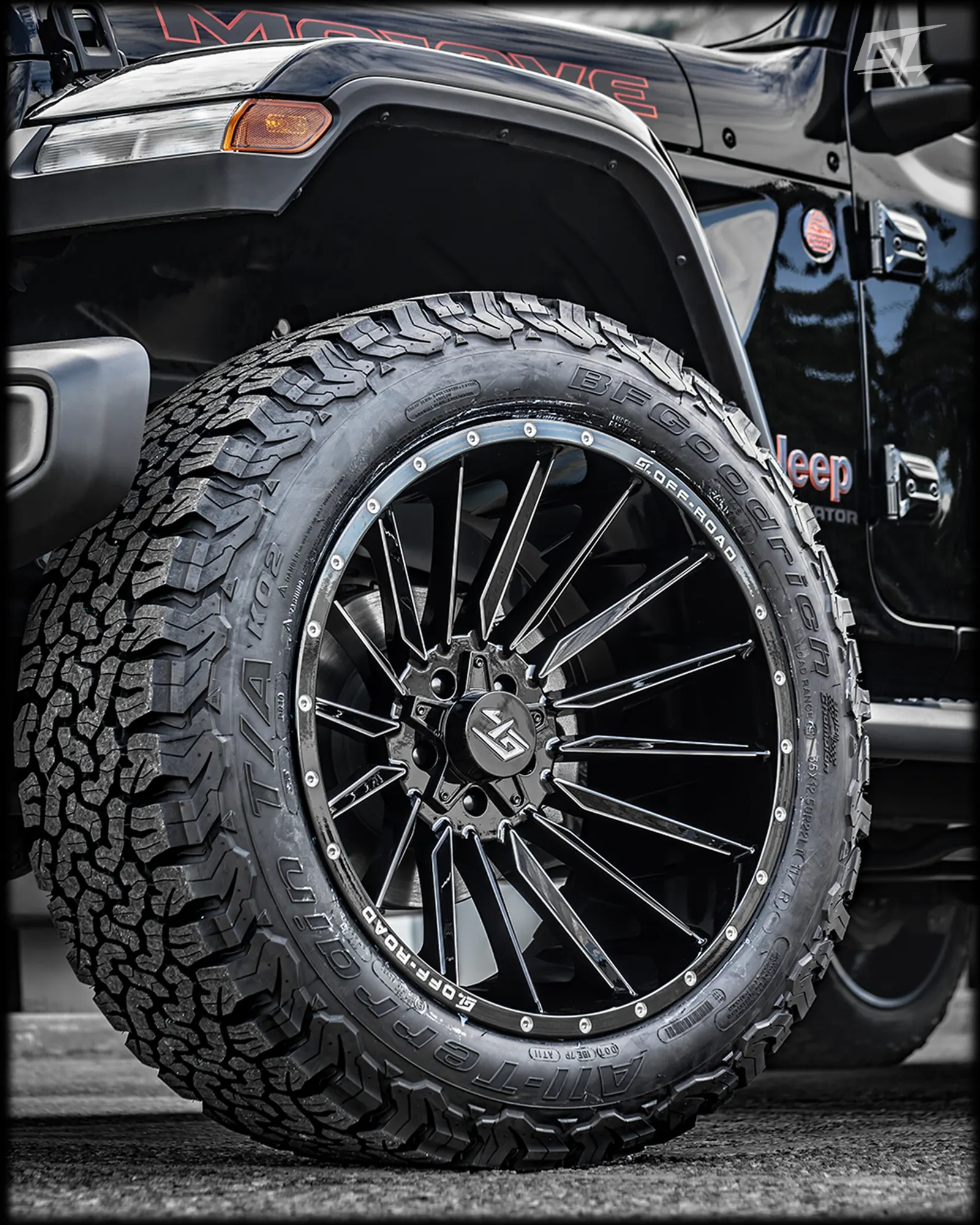

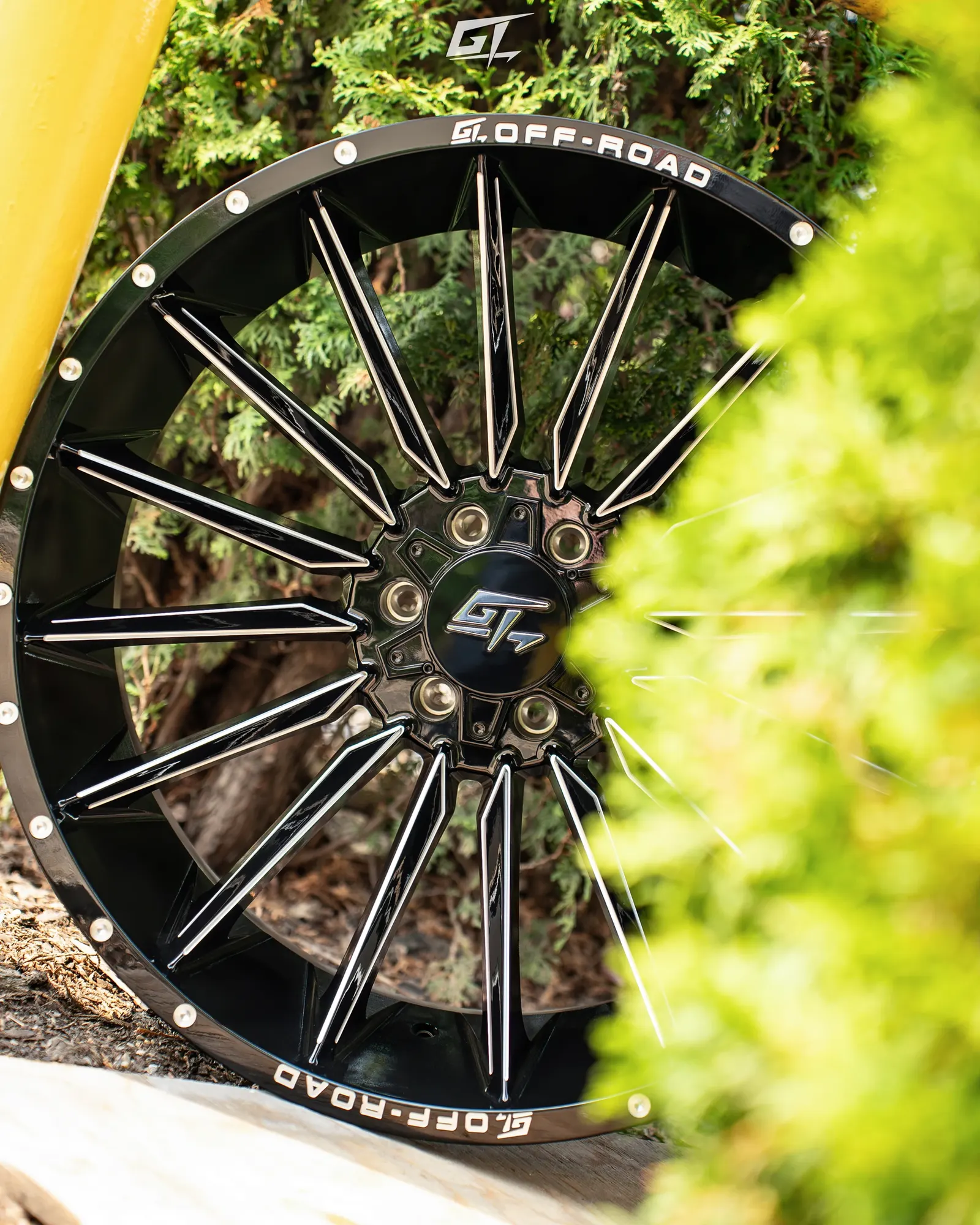

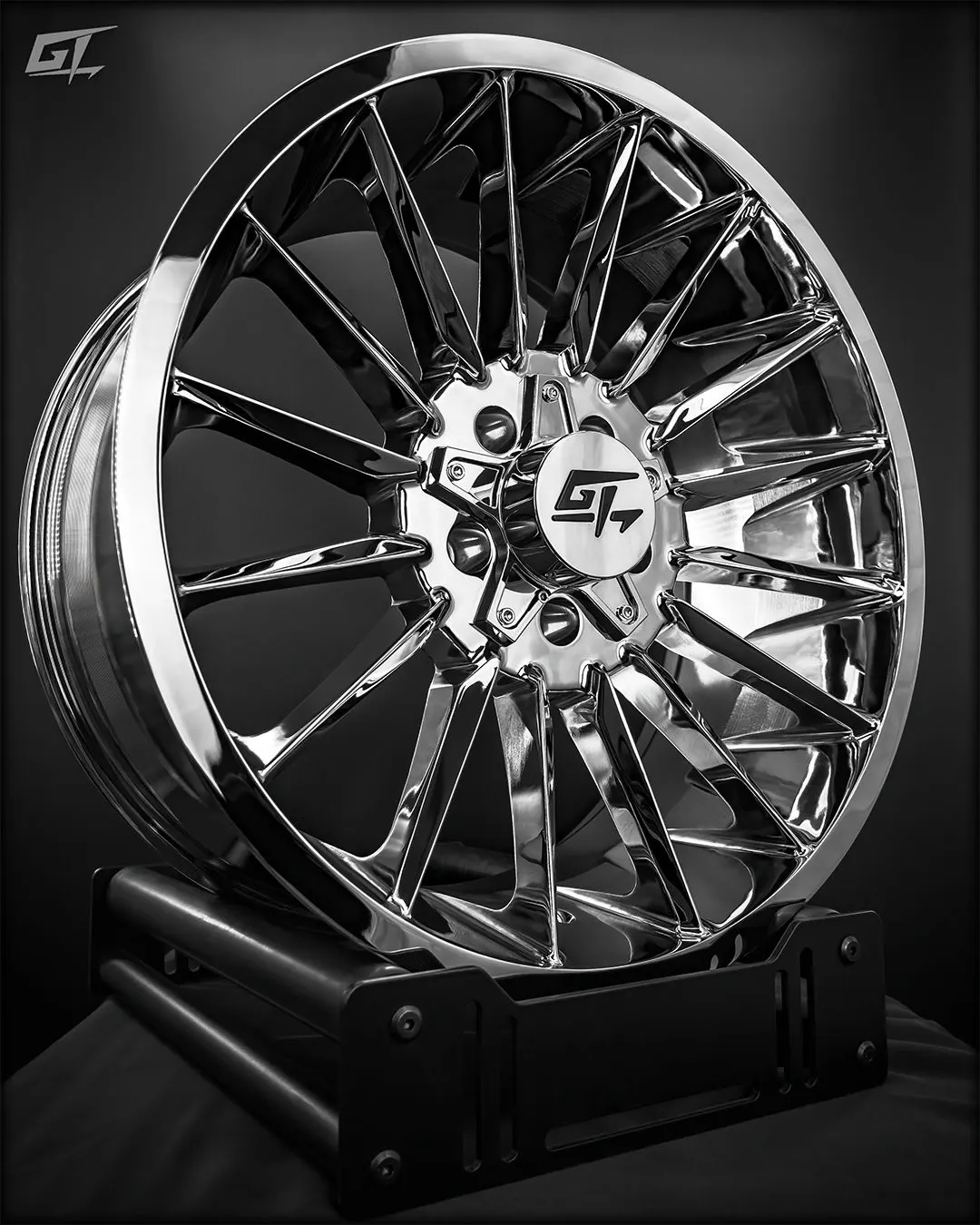

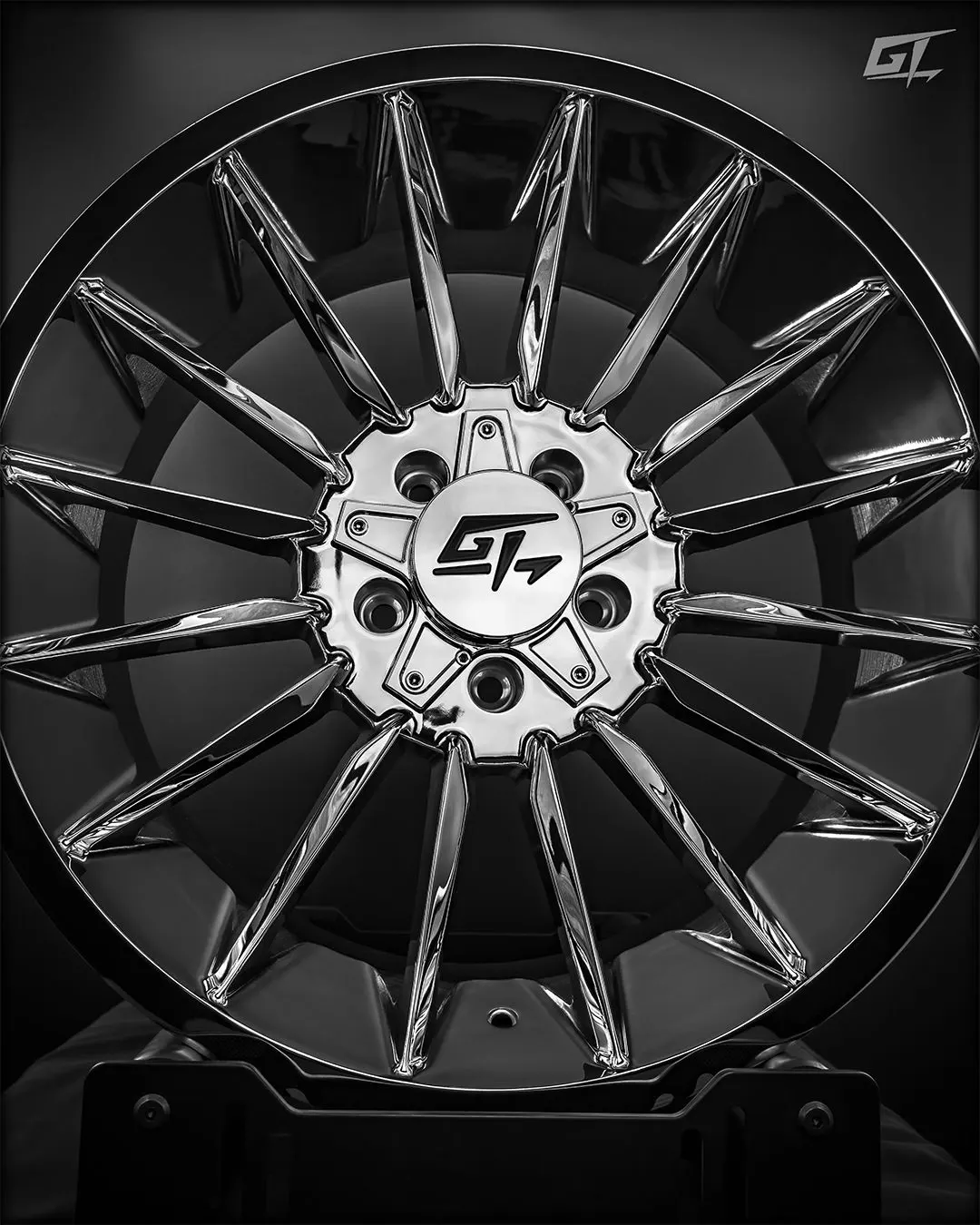

The Stark's multi-spoke layout and deep concave profile create a bold, aggressive look. Unique slanted spokes add a dynamic, three-dimensional feel.

Exposed lug holes and a GT center cap finish it off.

Finish

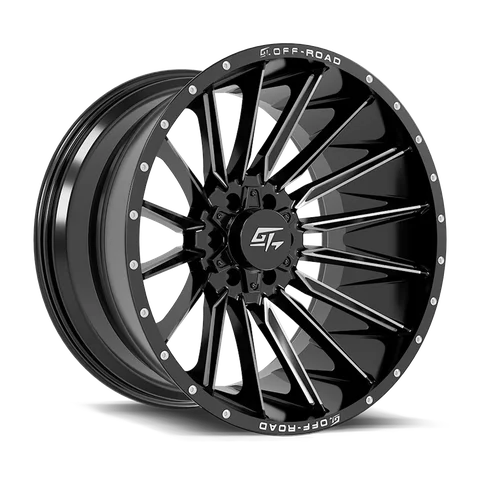

Gloss Black Milled

Sizes & offsets (mm)

Available sizes by diameter
20"	20x9+1220x10−18
22"	22x10−1822x12−44
24"	24x12−44

Request a quote Find a dealer

Not every size is offered in every bolt pattern. Tell us your truck and we'll confirm the exact fitment.

Full specifications Part numbers (40) Download spec sheet (PDF)

Specifications

Stark spec sheet

Every size, offset, bolt pattern and finish for the GT Off-Road Stark.

Download PDF

Diameters: 20" · 22" · 24"
Widths: 9" · 10" · 12"
Offset range: +12 to −44 mm
Lug options: 5 / 6 / 8-lug
Center bore: 78.1–125.2 mm
Max load: Up to 3,200 lbs
Finishes: 2
Part numbers: 40

Sizes & fitment

Stark sizes, offsets and approximate backspacing
Size	Diameter	Width	Offset (mm)	Backspacing*	Stance
20x9	20"	9"	+12	5.47"	Mostly flush
20x10	20"	10"	−18	4.79"	Mild poke
22x10	22"	10"	−18	4.79"	Mild poke
22x12	22"	12"	−44	4.77"	Aggressive poke
24x12	24"	12"	−44	4.77"	Aggressive poke

*Approximate, calculated from width and offset. Actual stance depends on your truck's factory offset, lift and tire size.

Bolt patterns

5x1275 x 5"

5x139.75 x 5.5"

6x1356 x 135 mm

6x139.76 x 5.5"

8x165.18 x 6.5"

8x1708 x 170 mm

8x1808 x 180 mm

Bolt pattern availability varies by size. See the part number list for exact availability.

Construction & features

Slanted multi-spoke design
Deep concave profile
Exposed lug holes
GT center cap

Finishes

Complete spec sheet

Stark part numbers

Every Stark SKU by finish, size, offset and bolt pattern. Give your dealer the part number for an exact match.

Download CSV

40 of 40 part numbers

GT Off-Road Stark part numbers
Finish	Size	Offset	Bolt pattern	Center bore (mm)	Max load (lbs)	Quote
Gloss Black Milled	20x9	+12	5x127 / 5x139.7	78.1	2,500	Quote
Gloss Black Milled	20x9	+12	6x135 / 6x139.7	106.1	2,500	Quote
Gloss Black Milled	20x9	+12	8x165.1 / 8x170	125.2	3,200	Quote
Gloss Black Milled	20x9	+12	8x165.1 / 8x180	125.2	3,200	Quote
Gloss Black Milled	20x10	−18	5x127 / 5x139.7	78.1	2,500	Quote
Gloss Black Milled	20x10	−18	6x135 / 6x139.7	106.1	2,500	Quote
Gloss Black Milled	20x10	−18	8x165.1 / 8x170	125.2	3,200	Quote
Gloss Black Milled	20x10	−18	8x165.1 / 8x180	125.2	3,200	Quote
Gloss Black Milled	22x10	−18	5x127 / 5x139.7	78.1	2,500	Quote
Gloss Black Milled	22x10	−18	6x135 / 6x139.7	106.1	2,500	Quote
Gloss Black Milled	22x10	−18	8x165.1 / 8x170	125.2	3,200	Quote
Gloss Black Milled	22x10	−18	8x165.1 / 8x180	125.2	3,200	Quote
Gloss Black Milled	22x12	−44	5x127 / 5x139.7	78.1	2,500	Quote
Gloss Black Milled	22x12	−44	6x135 / 6x139.7	106.1	2,500	Quote
Gloss Black Milled	22x12	−44	8x165.1 / 8x170	125.2	3,200	Quote
Gloss Black Milled	22x12	−44	8x165.1 / 8x180	125.2	3,200	Quote
Gloss Black Milled	24x12	−44	5x127 / 5x139.7	78.1	2,500	Quote
Gloss Black Milled	24x12	−44	6x135 / 6x139.7	106.1	2,500	Quote
Gloss Black Milled	24x12	−44	8x165.1 / 8x170	125.2	3,200	Quote
Gloss Black Milled	24x12	−44	8x165.1 / 8x180	125.2	3,200	Quote

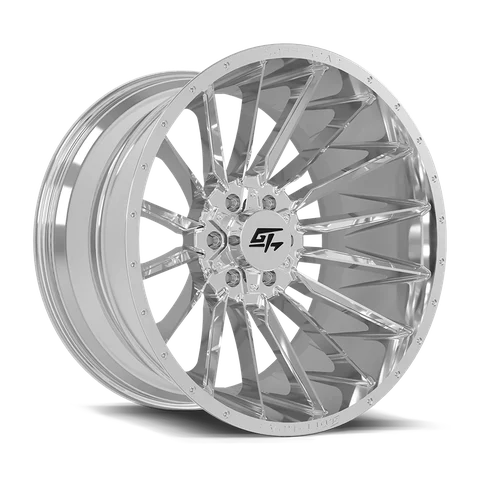

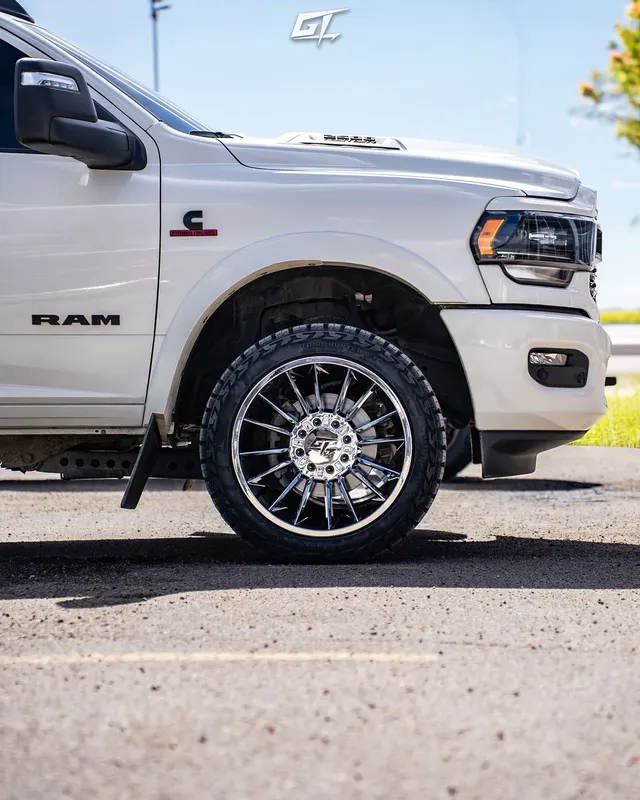

Chrome	20x9	+12	5x127 / 5x139.7	78.1	2,500	Quote
Chrome	20x9	+12	6x135 / 6x139.7	106.1	2,500	Quote
Chrome	20x9	+12	8x165.1 / 8x170	125.2	3,200	Quote
Chrome	20x9	+12	8x165.1 / 8x180	125.2	3,200	Quote
Chrome	20x10	−18	5x127 / 5x139.7	78.1	2,500	Quote
Chrome	20x10	−18	6x135 / 6x139.7	106.1	2,500	Quote
Chrome	20x10	−18	8x165.1 / 8x170	125.2	3,200	Quote
Chrome	20x10	−18	8x165.1 / 8x180	125.2	3,200	Quote
Chrome	22x10	−18	5x127 / 5x139.7	78.1	2,500	Quote
Chrome	22x10	−18	6x135 / 6x139.7	106.1	2,500	Quote
Chrome	22x10	−18	8x165.1 / 8x170	125.2	3,200	Quote
Chrome	22x10	−18	8x165.1 / 8x180	125.2	3,200	Quote
Chrome	22x12	−44	5x127 / 5x139.7	78.1	2,500	Quote
Chrome	22x12	−44	6x135 / 6x139.7	106.1	2,500	Quote
Chrome	22x12	−44	8x165.1 / 8x170	125.2	3,200	Quote
Chrome	22x12	−44	8x165.1 / 8x180	125.2	3,200	Quote
Chrome	24x12	−44	5x127 / 5x139.7	78.1	2,500	Quote
Chrome	24x12	−44	6x135 / 6x139.7	106.1	2,500	Quote
Chrome	24x12	−44	8x165.1 / 8x170	125.2	3,200	Quote
Chrome	24x12	−44	8x165.1 / 8x180	125.2	3,200	Quote
