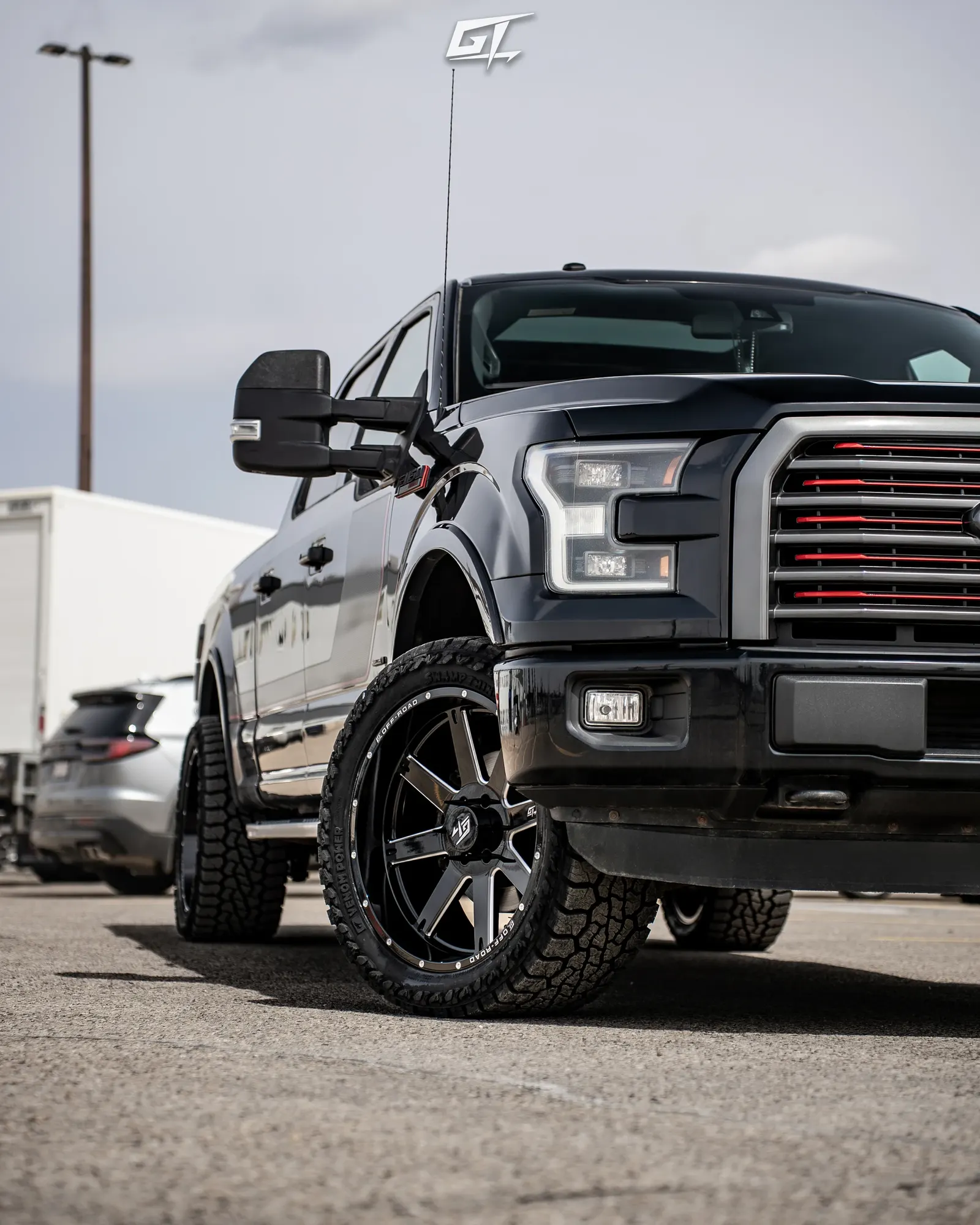

Invasion

Straight 8-spoke · milled edges

The Invasion is a beautifully balanced wheel, with a straight 8-spoke design and milling along the edge of each spoke.

A slightly concave face and a substantial lip give it presence from every angle.

Finish

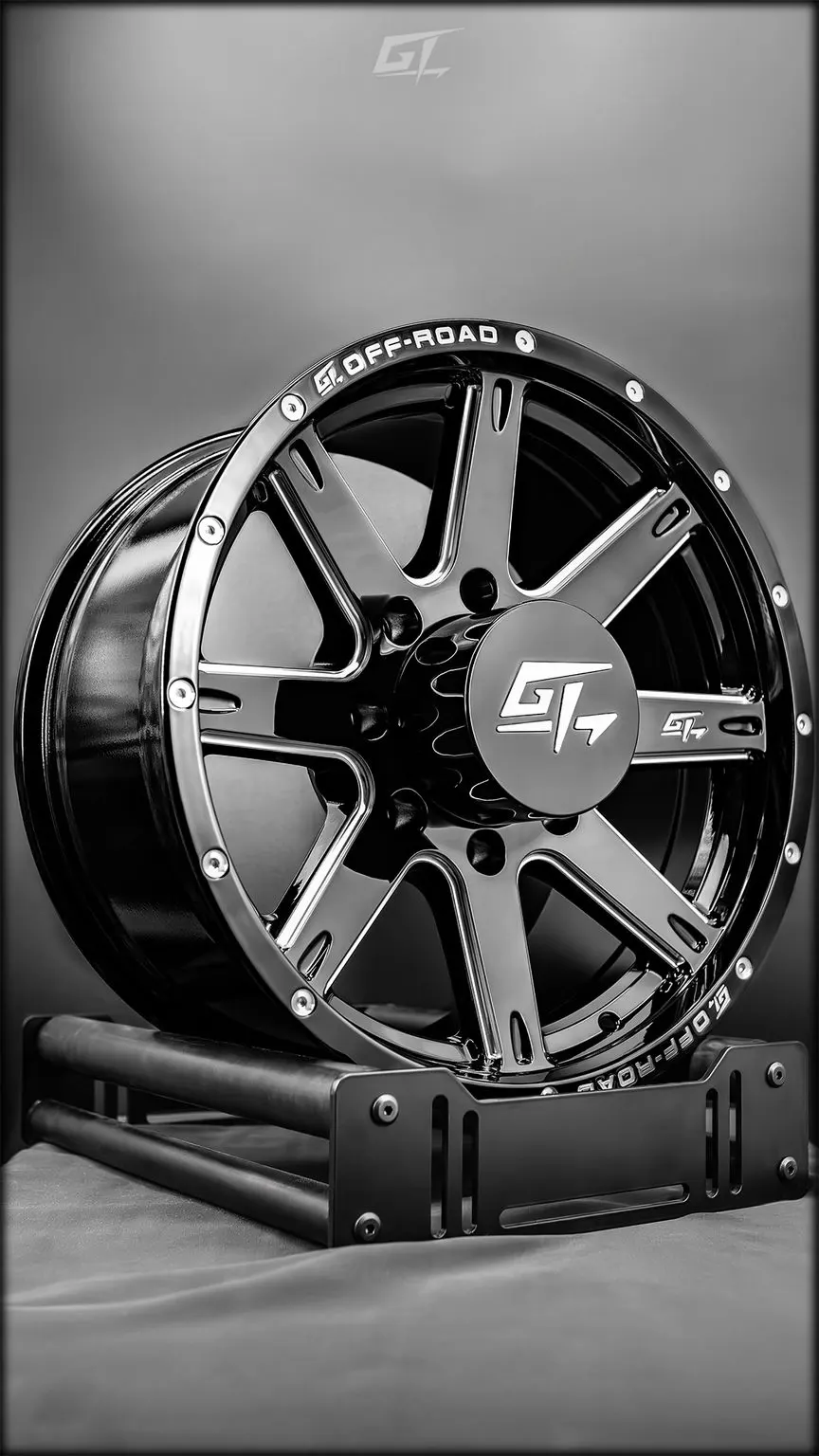

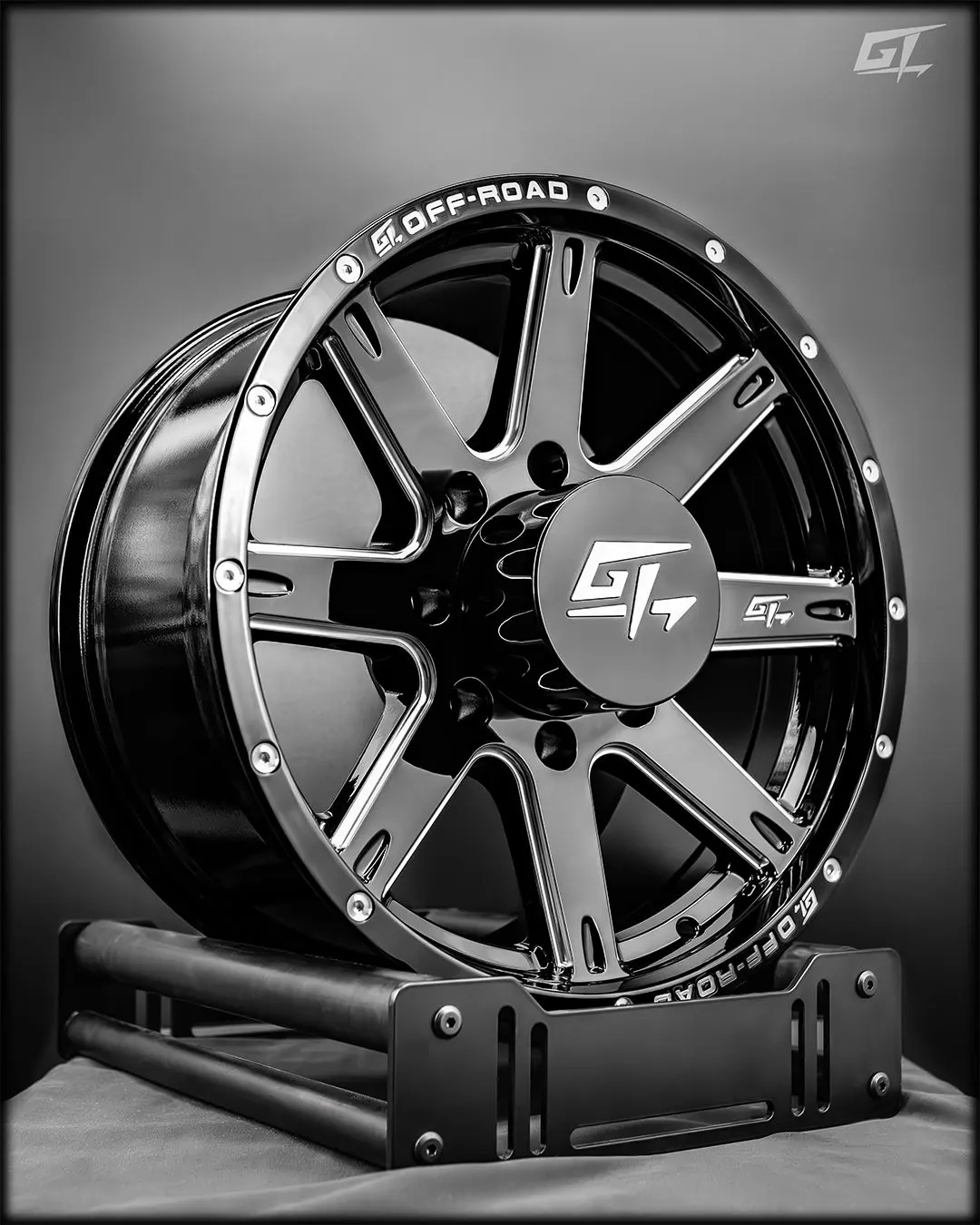

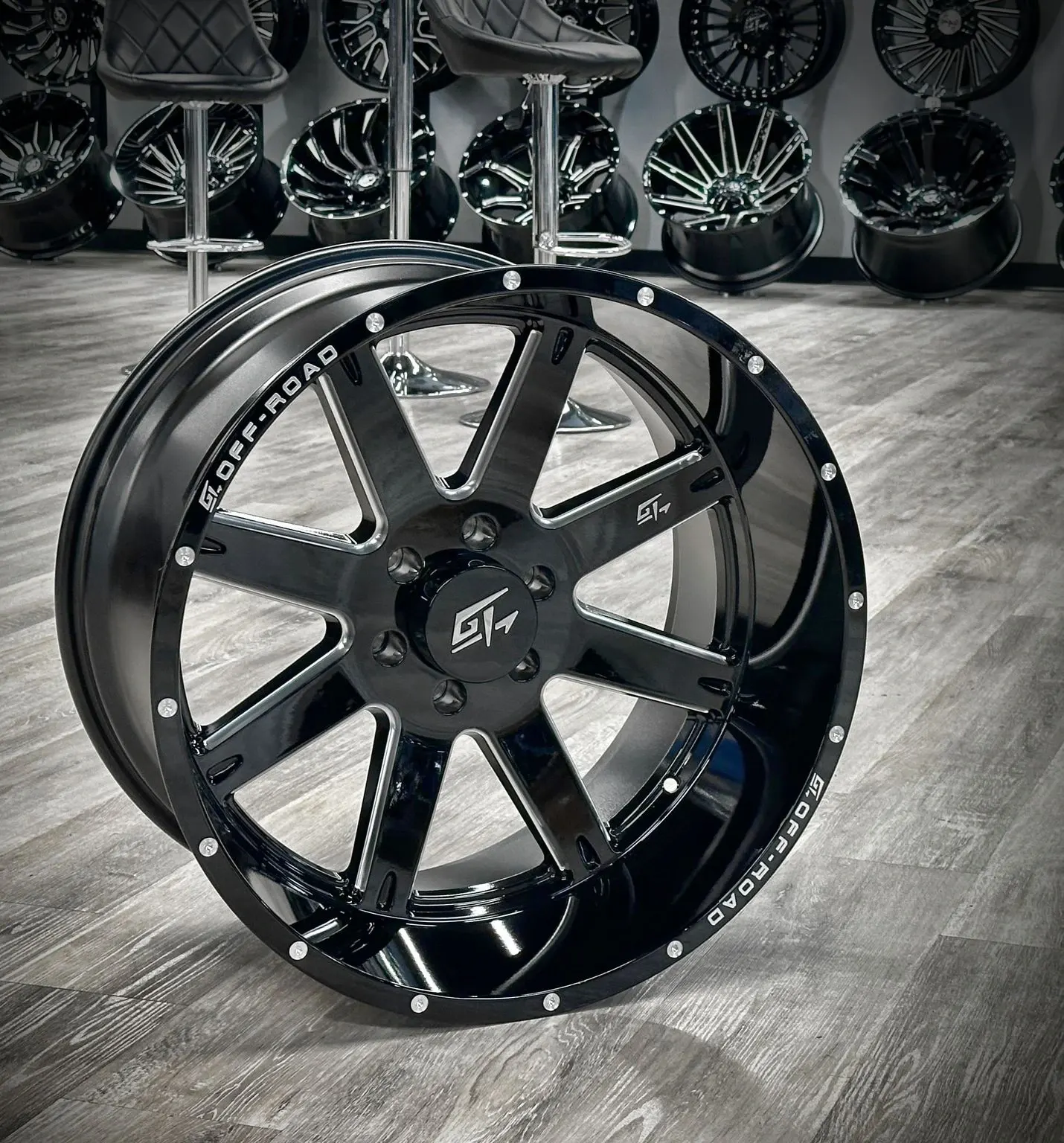

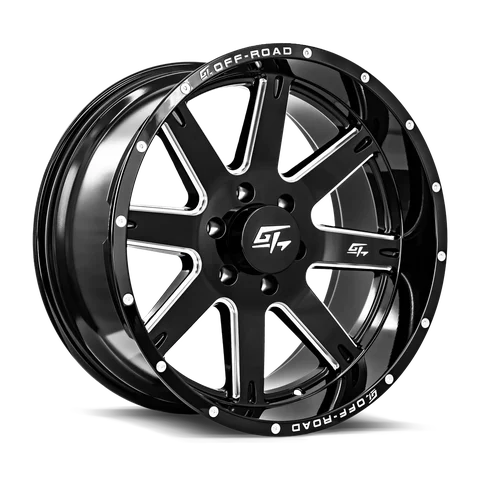

Gloss Black Milled

Sizes & offsets (mm)

Available sizes by diameter
17"	17x9+12
18"	18x9+12
20"	20x9+1220x10−18
22"	22x10−1822x12−44

Request a quote Find a dealer

Not every size is offered in every bolt pattern. Tell us your truck and we'll confirm the exact fitment.

Full specifications Part numbers (93) Download spec sheet (PDF)

Specifications

Invasion spec sheet

Every size, offset, bolt pattern and finish for the GT Off-Road Invasion.

Download PDF

Diameters: 17" · 18" · 20" · 22"
Widths: 9" · 10" · 12"
Offset range: +12 to −44 mm
Lug options: 5 / 6 / 8-lug
Center bore: 78.1–125.2 mm
Max load: Up to 3,200 lbs
Finishes: 3
Part numbers: 93

Sizes & fitment

Invasion sizes, offsets and approximate backspacing
Size	Diameter	Width	Offset (mm)	Backspacing*	Stance
17x9	17"	9"	+12	5.47"	Mostly flush
18x9	18"	9"	+12	5.47"	Mostly flush
20x9	20"	9"	+12	5.47"	Mostly flush
20x10	20"	10"	−18	4.79"	Mild poke
22x10	22"	10"	−18	4.79"	Mild poke
22x12	22"	12"	−44	4.77"	Aggressive poke

*Approximate, calculated from width and offset. Actual stance depends on your truck's factory offset, lift and tire size.

Bolt patterns

5x1275 x 5"

5x139.75 x 5.5"

6x1356 x 135 mm

6x139.76 x 5.5"

8x165.18 x 6.5"

8x1708 x 170 mm

8x1808 x 180 mm

Bolt pattern availability varies by size. See the part number list for exact availability.

Construction & features

Straight 8-spoke design
Milled spoke edges
Slightly concave face with a substantial lip

Finishes

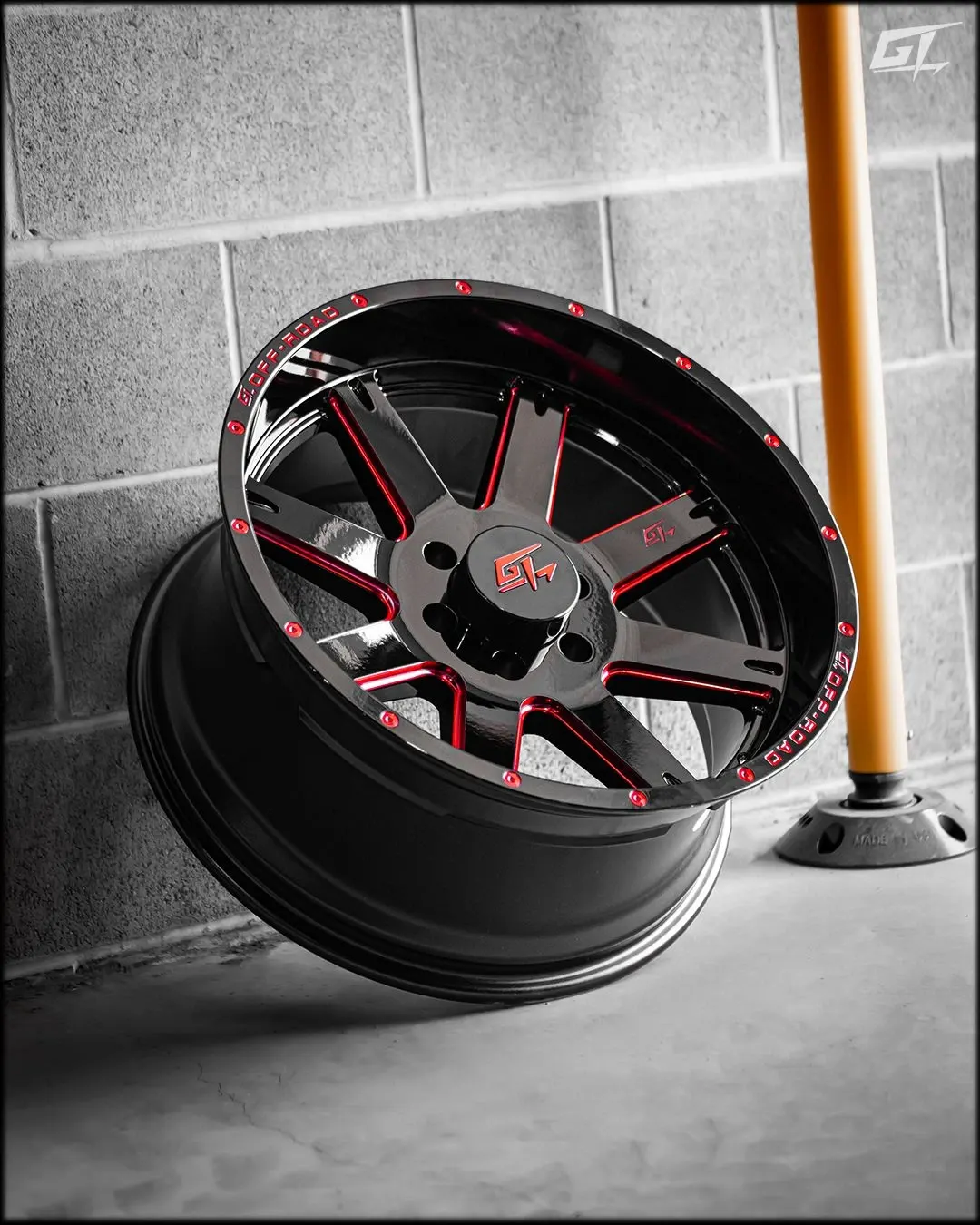

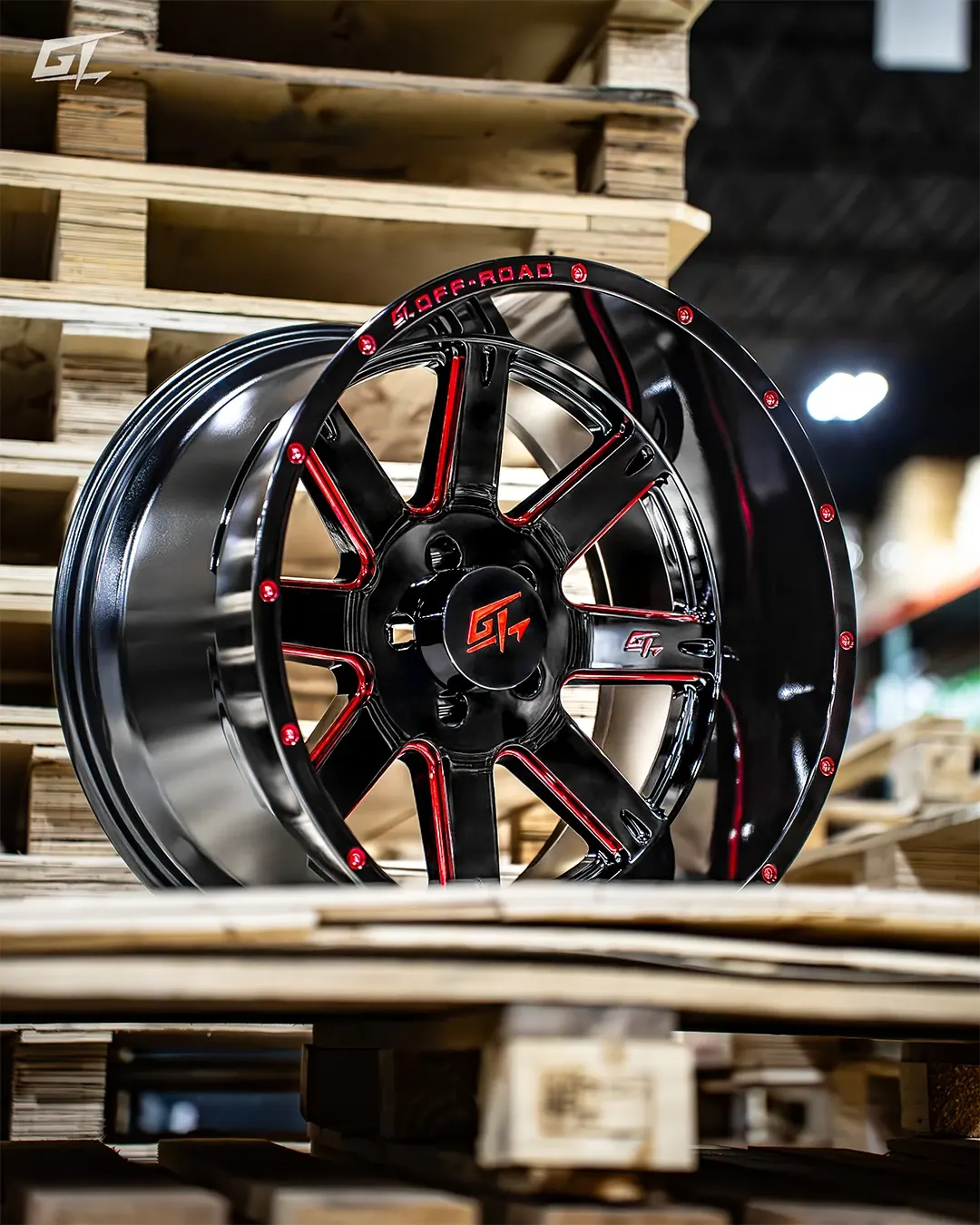

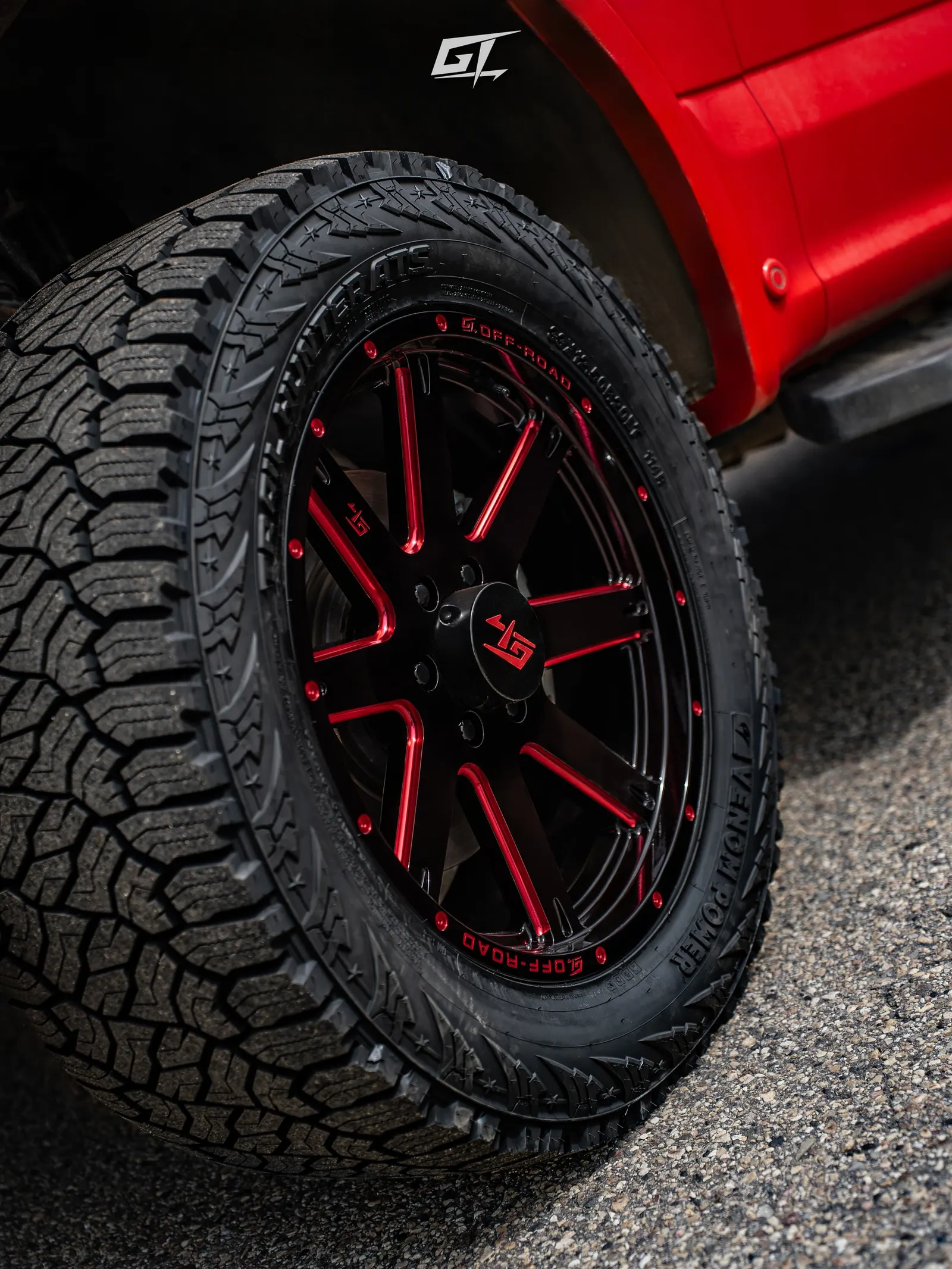

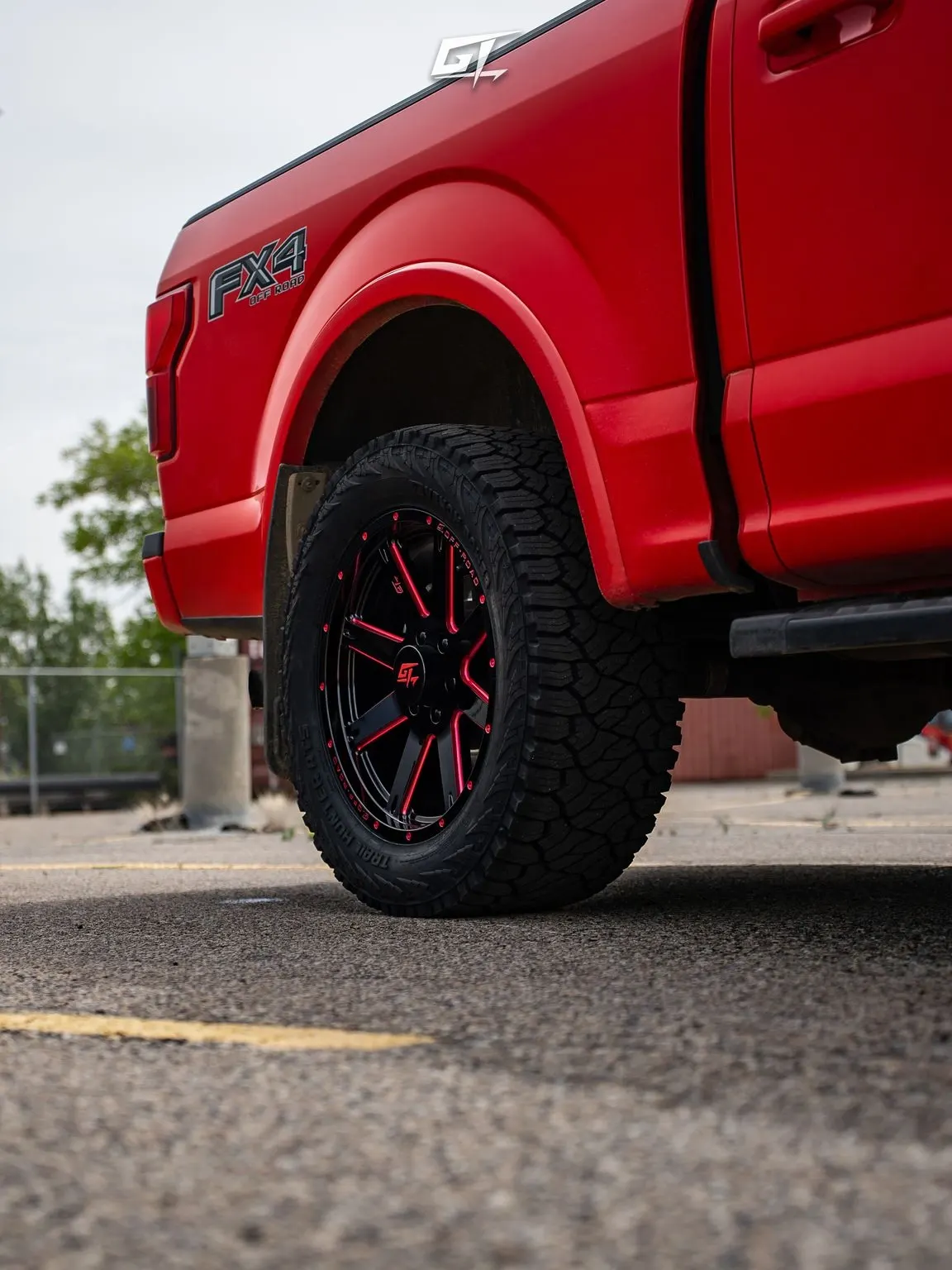

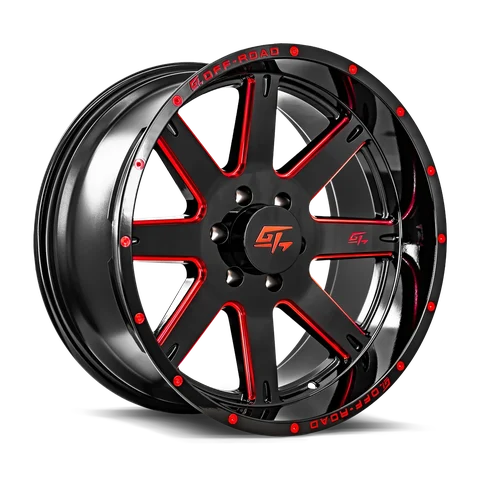

GT Off-Road Invasion in Gloss Black Red Milled — Gloss Black Red Milled

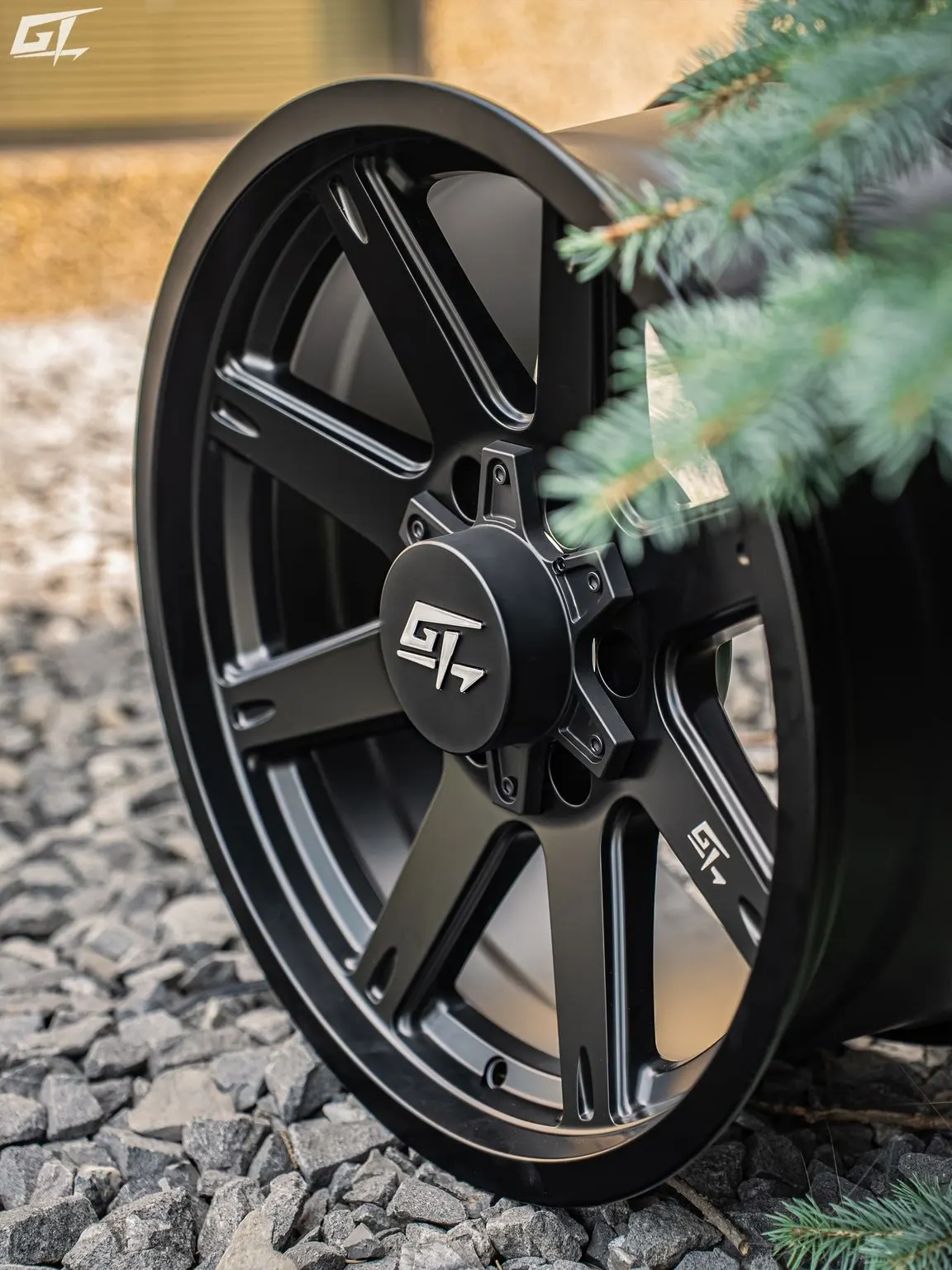

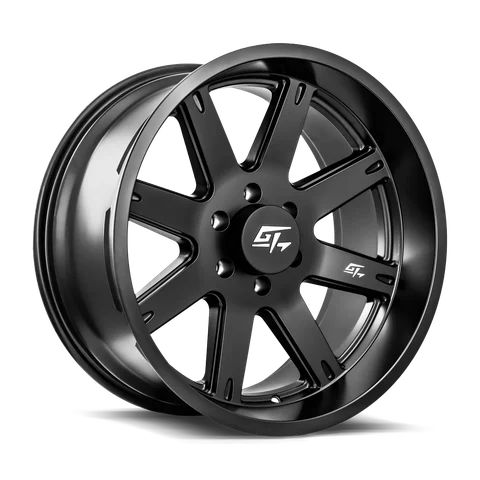

GT Off-Road Invasion in Satin Black — Satin Black

Complete spec sheet

Invasion part numbers

Every Invasion SKU by finish, size, offset and bolt pattern. Give your dealer the part number for an exact match.

Download CSV

93 of 93 part numbers

GT Off-Road Invasion part numbers
Finish	Size	Offset	Bolt pattern	Center bore (mm)	Max load (lbs)	Quote
Gloss Black Milled	17x9	+12	5x127 / 5x139.7	78.1	2,500	Quote
Gloss Black Milled	17x9	+12	6x135 / 6x139.7	106.1	2,500	Quote
Gloss Black Milled	17x9	+12	8x165.1	125.2	3,200	Quote
Gloss Black Milled	17x9	+12	8x170	125.2	3,200	Quote
Gloss Black Milled	17x9	+12	8x180	125.2	3,200	Quote
Gloss Black Milled	18x9	+12	5x127 / 5x139.7	78.1	2,500	Quote
Gloss Black Milled	18x9	+12	6x135 / 6x139.7	106.1	2,500	Quote
Gloss Black Milled	18x9	+12	8x165.1	125.2	3,200	Quote
Gloss Black Milled	18x9	+12	8x170	125.2	3,200	Quote
Gloss Black Milled	18x9	+12	8x180	125.2	3,200	Quote
Gloss Black Milled	20x9	+12	5x139.7	108.1	2,500	Quote
Gloss Black Milled	20x9	+12	6x135	87.1	2,500	Quote
Gloss Black Milled	20x9	+12	6x139.7	106.1	2,500	Quote
Gloss Black Milled	20x9	+12	8x165.1	125.2	3,200	Quote
Gloss Black Milled	20x9	+12	8x170	125.2	3,200	Quote
Gloss Black Milled	20x9	+12	8x180	125.2	3,200	Quote
Gloss Black Milled	20x10	−18	5x127	87.1	2,500	Quote
Gloss Black Milled	20x10	−18	5x139.7	108.1	2,500	Quote
Gloss Black Milled	20x10	−18	6x135	87.1	2,500	Quote
Gloss Black Milled	20x10	−18	6x139.7	106.1	2,500	Quote
Gloss Black Milled	20x10	−18	8x165.1	125.2	3,200	Quote
Gloss Black Milled	20x10	−18	8x170	125.2	3,200	Quote
Gloss Black Milled	20x10	−18	8x180	125.2	3,200	Quote
Gloss Black Milled	20x12	−44	5x127	87.1	2,500	Quote
Gloss Black Milled	20x12	−44	5x139.7	108.1	2,500	Quote
Gloss Black Milled	20x12	−44	6x135	87.1	2,500	Quote
Gloss Black Milled	20x12	−44	6x139.7	106.1	2,500	Quote
Gloss Black Milled	20x12	−44	8x165.1	125.2	3,200	Quote
Gloss Black Milled	20x12	−44	8x170	125.2	3,200	Quote
Gloss Black Milled	20x12	−44	8x180	125.2	3,200	Quote
Gloss Black Milled	22x10	−18	5x139.7	108.1	2,500	Quote
Gloss Black Milled	22x10	−18	6x135	87.1	2,500	Quote
Gloss Black Milled	22x10	−18	6x139.7	106.1	2,500	Quote
Gloss Black Milled	22x10	−18	8x165.1	125.2	3,200	Quote
Gloss Black Milled	22x10	−18	8x170	125.2	3,200	Quote
Gloss Black Milled	22x10	−18	8x180	125.2	3,200	Quote
Gloss Black Milled	22x12	−44	5x127	87.1	2,500	Quote
Gloss Black Milled	22x12	−44	5x139.7	108.1	2,500	Quote
Gloss Black Milled	22x12	−44	6x135	87.1	2,500	Quote
Gloss Black Milled	22x12	−44	6x139.7	106.1	2,500	Quote
Gloss Black Milled	22x12	−44	8x165.1	125.2	3,200	Quote
Gloss Black Milled	22x12	−44	8x170	125.2	3,200	Quote
Gloss Black Milled	22x12	−44	8x180	125.2	3,200	Quote
Gloss Black Red Milled	20x9	+12	6x135	87.1	2,500	Quote
Gloss Black Red Milled	20x9	+12	6x139.7	106.1	2,500	Quote
Gloss Black Red Milled	20x10	−18	5x127	87.1	2,500	Quote
Gloss Black Red Milled	20x10	−18	6x135	87.1	2,500	Quote
Gloss Black Red Milled	20x10	−18	6x139.7	106.1	2,500	Quote
Gloss Black Red Milled	20x12	−44	5x127	87.1	2,500	Quote
Gloss Black Red Milled	22x12	−44	5x127	87.1	2,500	Quote
Satin Black	17x9	+12	5x127 / 5x139.7	78.1	2,500	Quote
Satin Black	17x9	+12	6x135 / 6x139.7	106.1	2,500	Quote
Satin Black	17x9	+12	8x165.1	125.2	3,200	Quote
Satin Black	17x9	+12	8x170	125.2	3,200	Quote
Satin Black	17x9	+12	8x180	125.2	3,200	Quote
Satin Black	18x9	+12	5x127 / 5x139.7	78.1	2,500	Quote
Satin Black	18x9	+12	6x135 / 6x139.7	106.1	2,500	Quote
Satin Black	18x9	+12	8x165.1	125.2	3,200	Quote
Satin Black	18x9	+12	8x170	125.2	3,200	Quote
Satin Black	18x9	+12	8x180	125.2	3,200	Quote
Satin Black	20x9	+12	5x139.7	108.1	2,500	Quote
Satin Black	20x9	+12	6x135	87.1	2,500	Quote
Satin Black	20x9	+12	6x139.7	106.1	2,500	Quote
Satin Black	20x9	+12	8x165.1	125.2	3,200	Quote
Satin Black	20x9	+12	8x170	125.2	3,200	Quote
Satin Black	20x9	+12	8x180	125.2	3,200	Quote
Satin Black	20x10	−18	5x127	87.1	2,500	Quote
Satin Black	20x10	−18	5x139.7	108.1	2,500	Quote
Satin Black	20x10	−18	6x135	87.1	2,500	Quote
Satin Black	20x10	−18	6x139.7	106.1	2,500	Quote
Satin Black	20x10	−18	8x165.1	125.2	3,200	Quote
Satin Black	20x10	−18	8x170	125.2	3,200	Quote
Satin Black	20x10	−18	8x180	125.2	3,200	Quote
Satin Black	20x12	−44	5x127	87.1	2,500	Quote
Satin Black	20x12	−44	5x139.7	108.1	2,500	Quote
Satin Black	20x12	−44	6x135	87.1	2,500	Quote
Satin Black	20x12	−44	6x139.7	106.1	2,500	Quote
Satin Black	20x12	−44	8x165.1	125.2	3,200	Quote
Satin Black	20x12	−44	8x170	125.2	3,200	Quote
Satin Black	20x12	−44	8x180	125.2	3,200	Quote
Satin Black	22x10	−18	5x139.7	108.1	2,500	Quote
Satin Black	22x10	−18	6x135	87.1	2,500	Quote
Satin Black	22x10	−18	6x139.7	106.1	2,500	Quote
Satin Black	22x10	−18	8x165.1	125.2	3,200	Quote
Satin Black	22x10	−18	8x170	125.2	3,200	Quote
Satin Black	22x10	−18	8x180	125.2	3,200	Quote
Satin Black	22x12	−44	5x127	87.1	2,500	Quote
Satin Black	22x12	−44	5x139.7	108.1	2,500	Quote
Satin Black	22x12	−44	6x135	87.1	2,500	Quote
Satin Black	22x12	−44	6x139.7	106.1	2,500	Quote
Satin Black	22x12	−44	8x165.1	125.2	3,200	Quote
Satin Black	22x12	−44	8x170	125.2	3,200	Quote
Satin Black	22x12	−44	8x180	125.2	3,200	Quote
